Watch the video0:55
MPN MC-4130-EVO

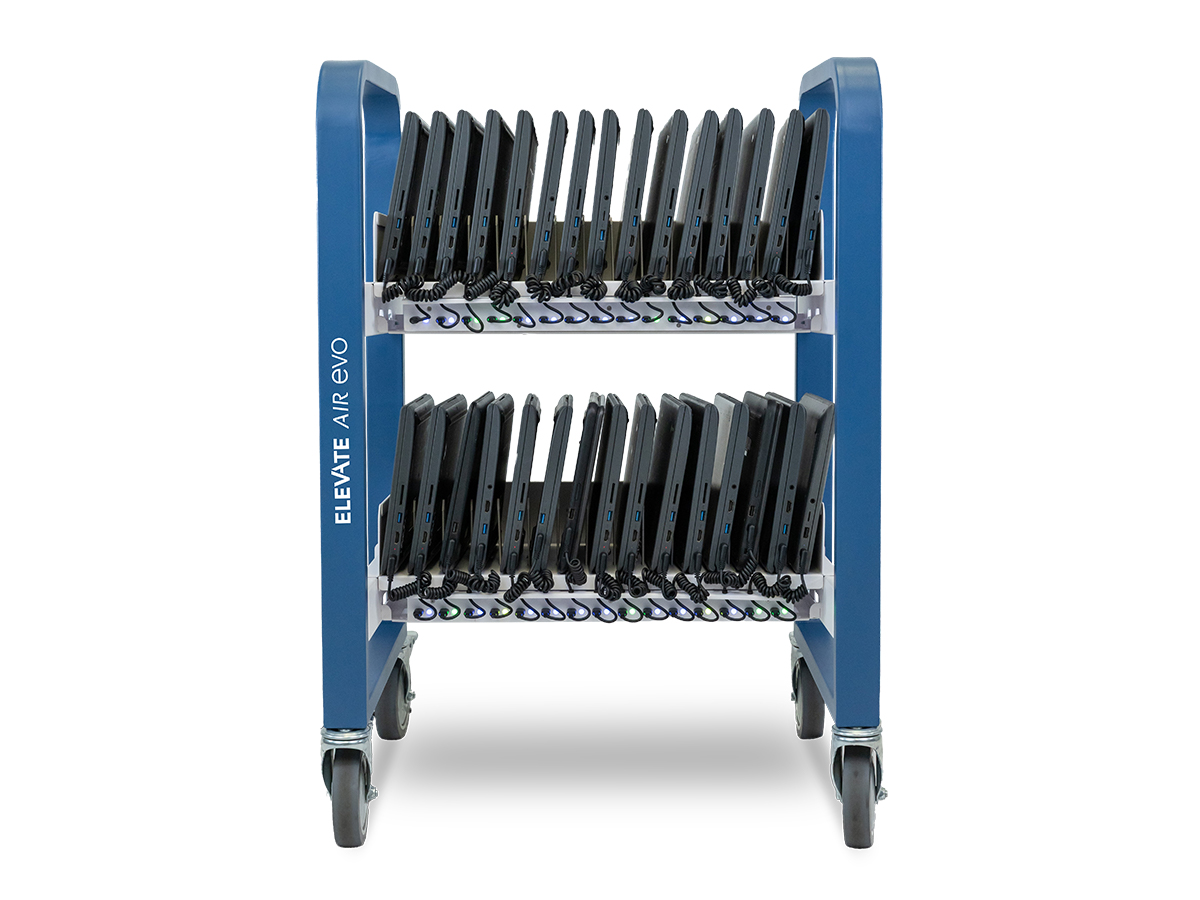

Elevate Air Evo
Open access for rooms that don't need to lock
- 30 devices on two open shelves
- Charging status visible at a glance from across the room
- Ergonomic handling built for users of all ages

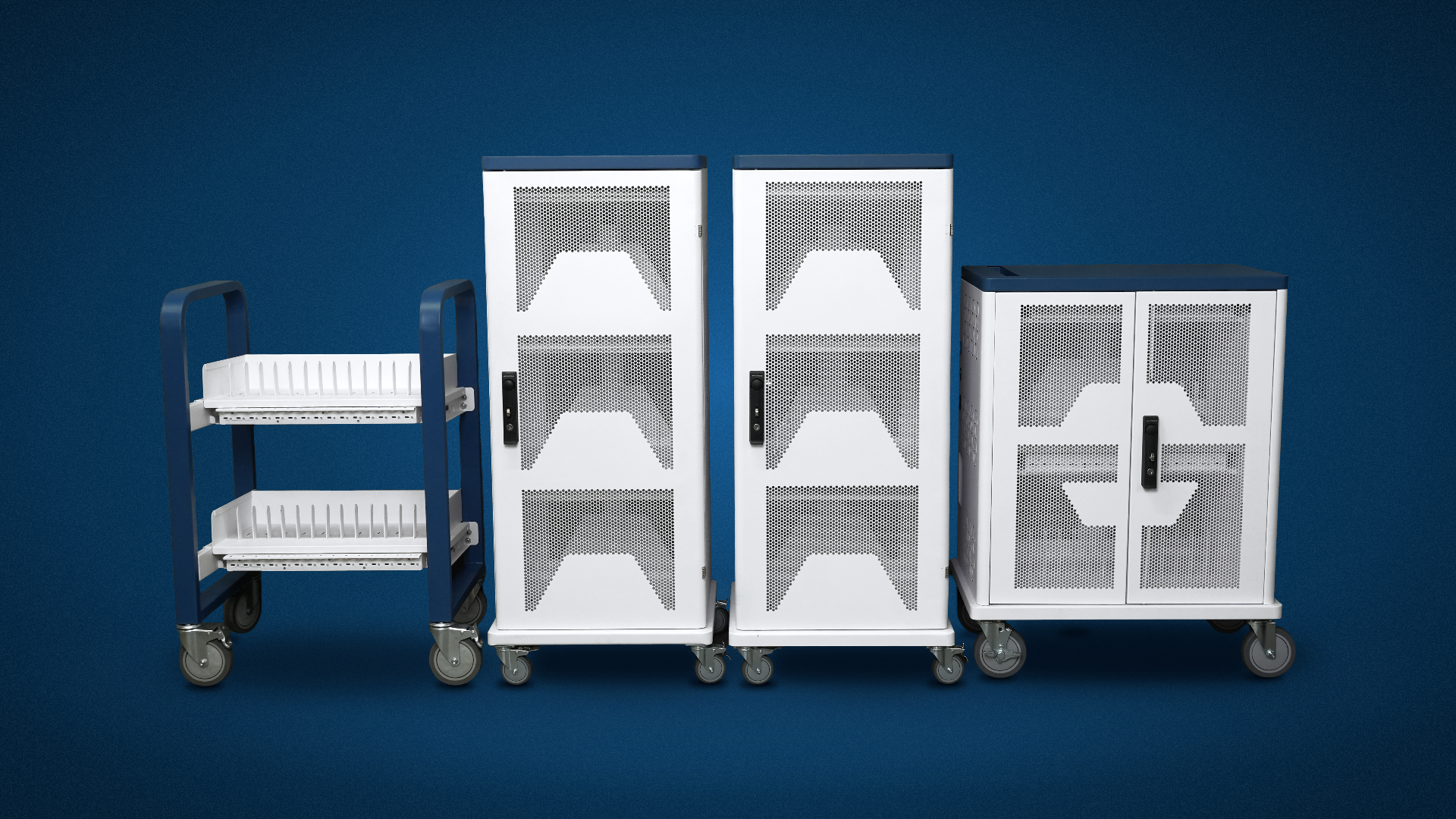

Four all-new carts for 30 to 42 devices, open-access or secured, built on the value JAR has always delivered and better everywhere else. Inside each, Quick-Sense Evo intelligently distributes power across every port.

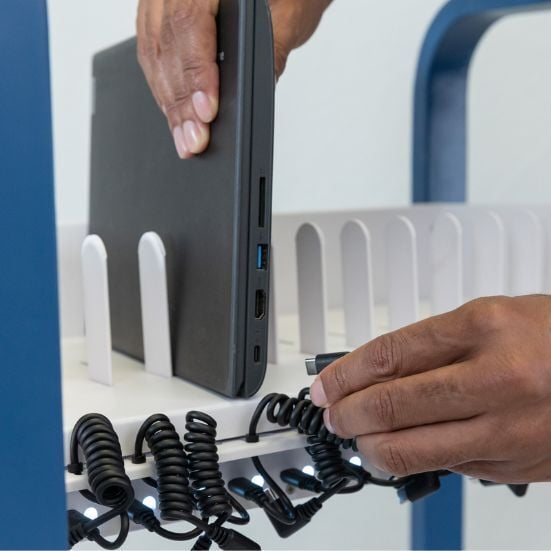

Every Elevate Evo cart runs on Quick-Sense Evo USB-C PD charging, with pre-installed coiled cables, numbered bays and LED charging-status indicators. What changes is the room it is built for.
Watch the video0:55
MPN MC-4130-EVO
Open access for rooms that don't need to lock
Watch the video0:57
MPN MC-6130-EVO
Secured charging for the everyday classroom
Watch the video0:56
MPN MC-7136-EVO
More devices in a tower footprint
Watch the video0:56

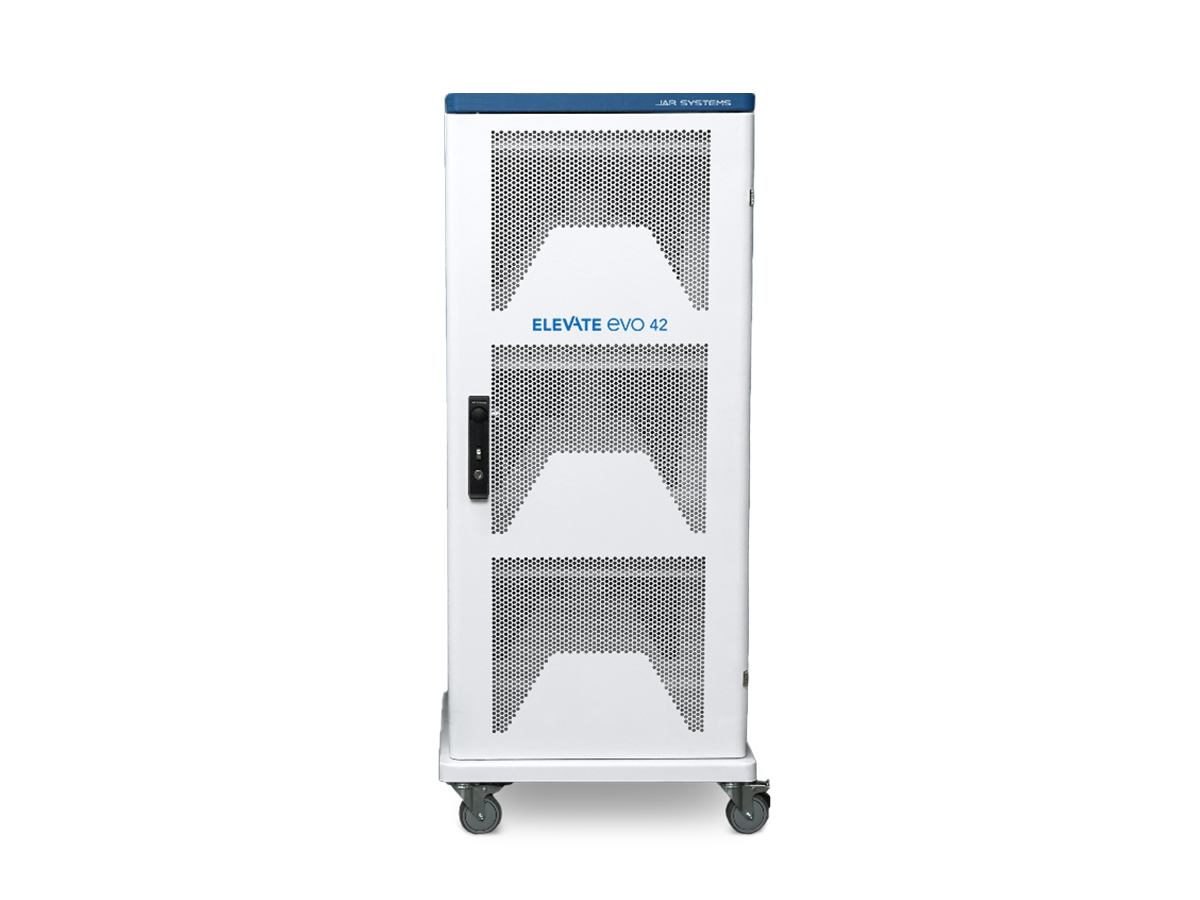

MPN MC-7142-EVO
The most devices in the line
Want help choosing the right cart?
Pick how many devices the room charges at once and see the model that fits, with its datasheet and a quote one click away.

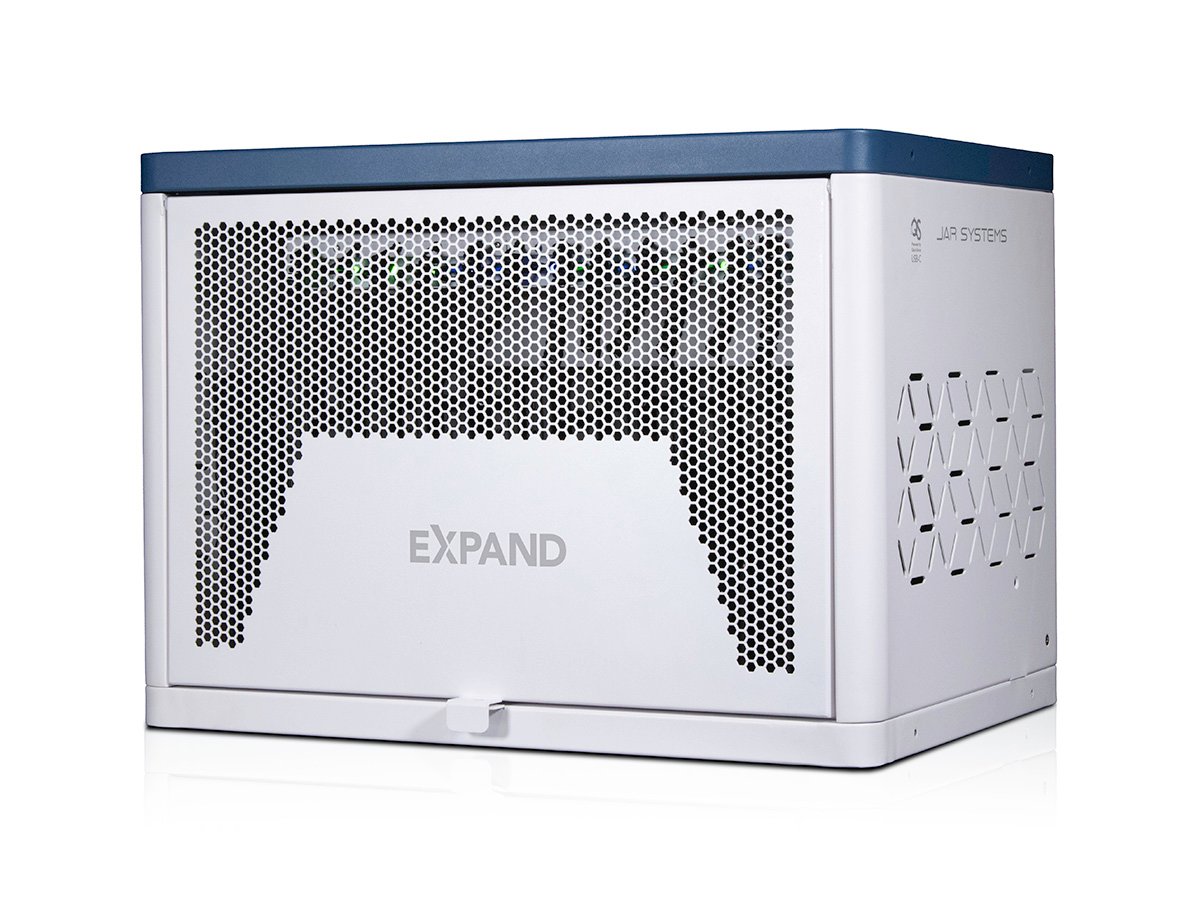

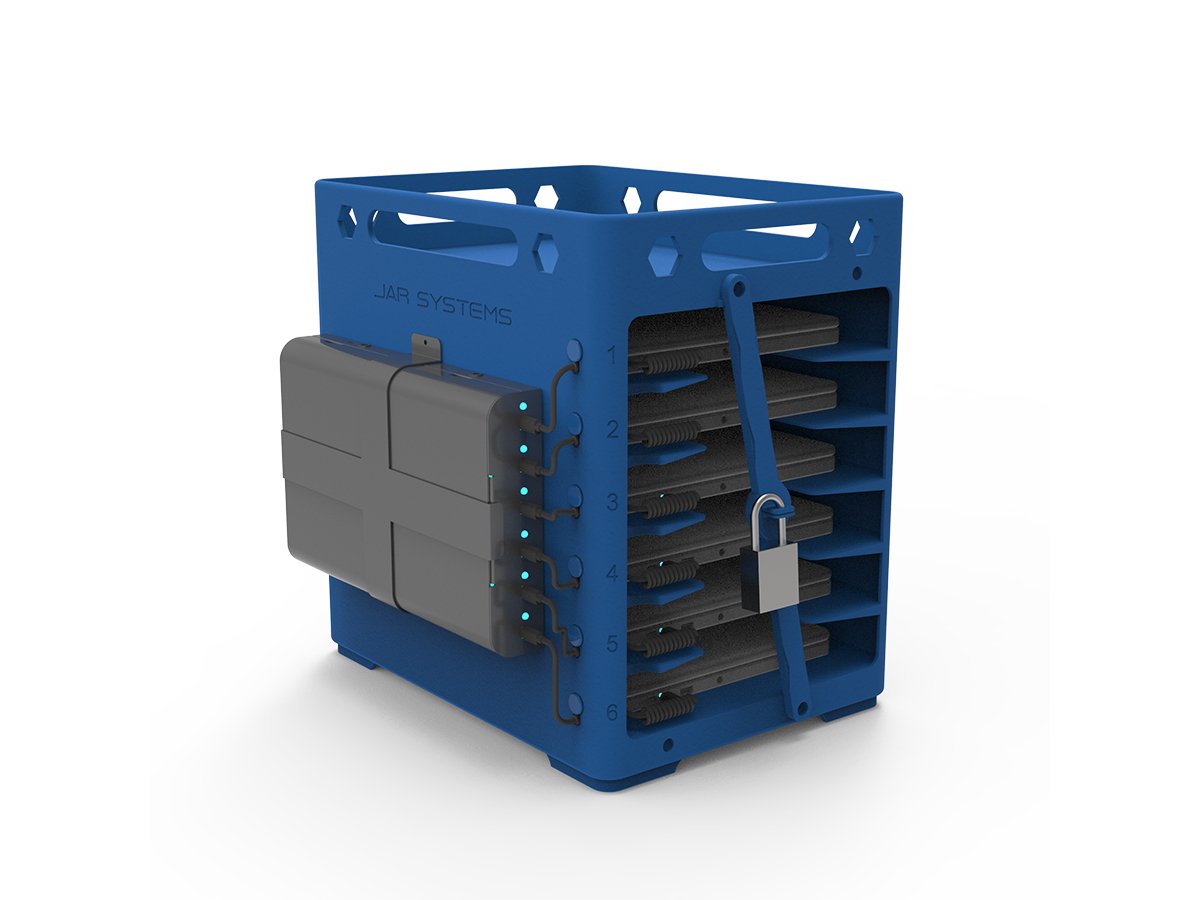

A portable station that stacks as the room grows.
A lockable station that can mount on a wall.
Open shelves, so devices are quick to grab and charging status is easy to see.
Secured charging for the everyday classroom.
More devices in a tower footprint.
The most devices in the line, in the Evo 36's footprint.
More than 42 devices, or a mix of rooms? Request a quote and your regional JAR team will plan it with you.
Faster access to devices, power that stays reachable with the doors shut, and service from the front.

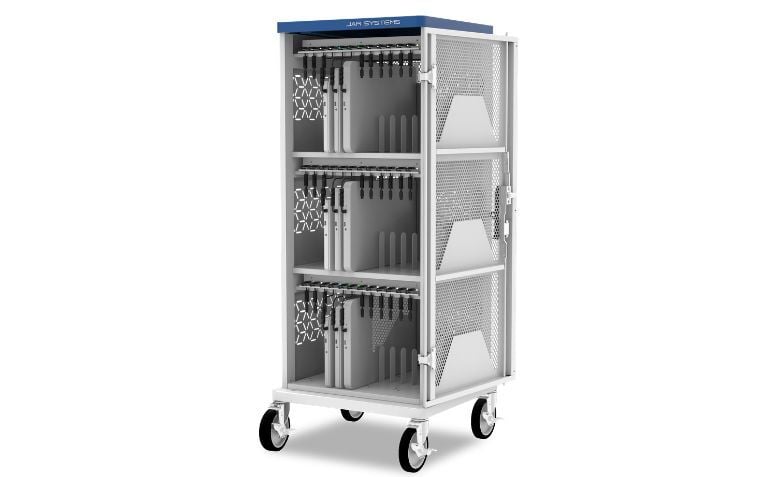

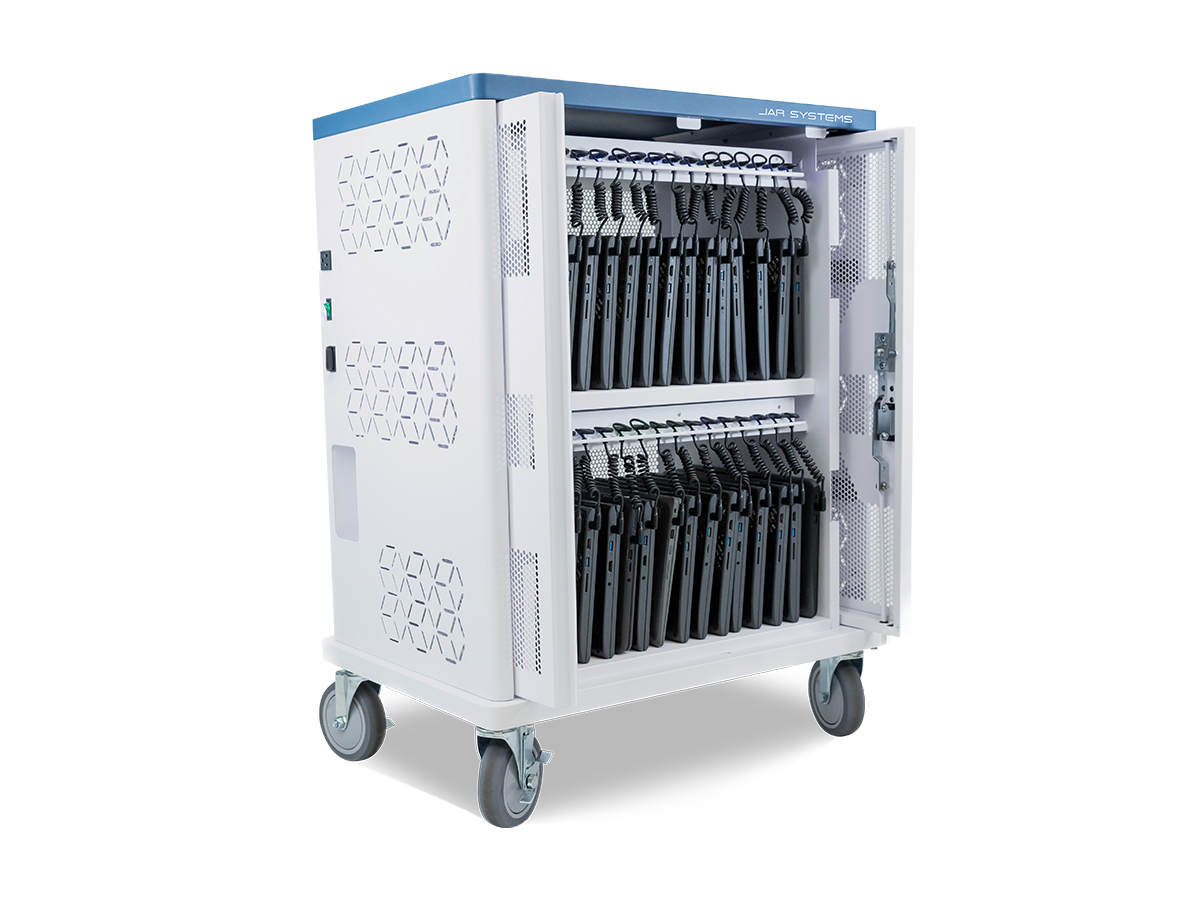

The Elevate Evo 30's slide-in doors tuck away; the Evo 36 and 42 have 270-degree doors that fold completely flat.

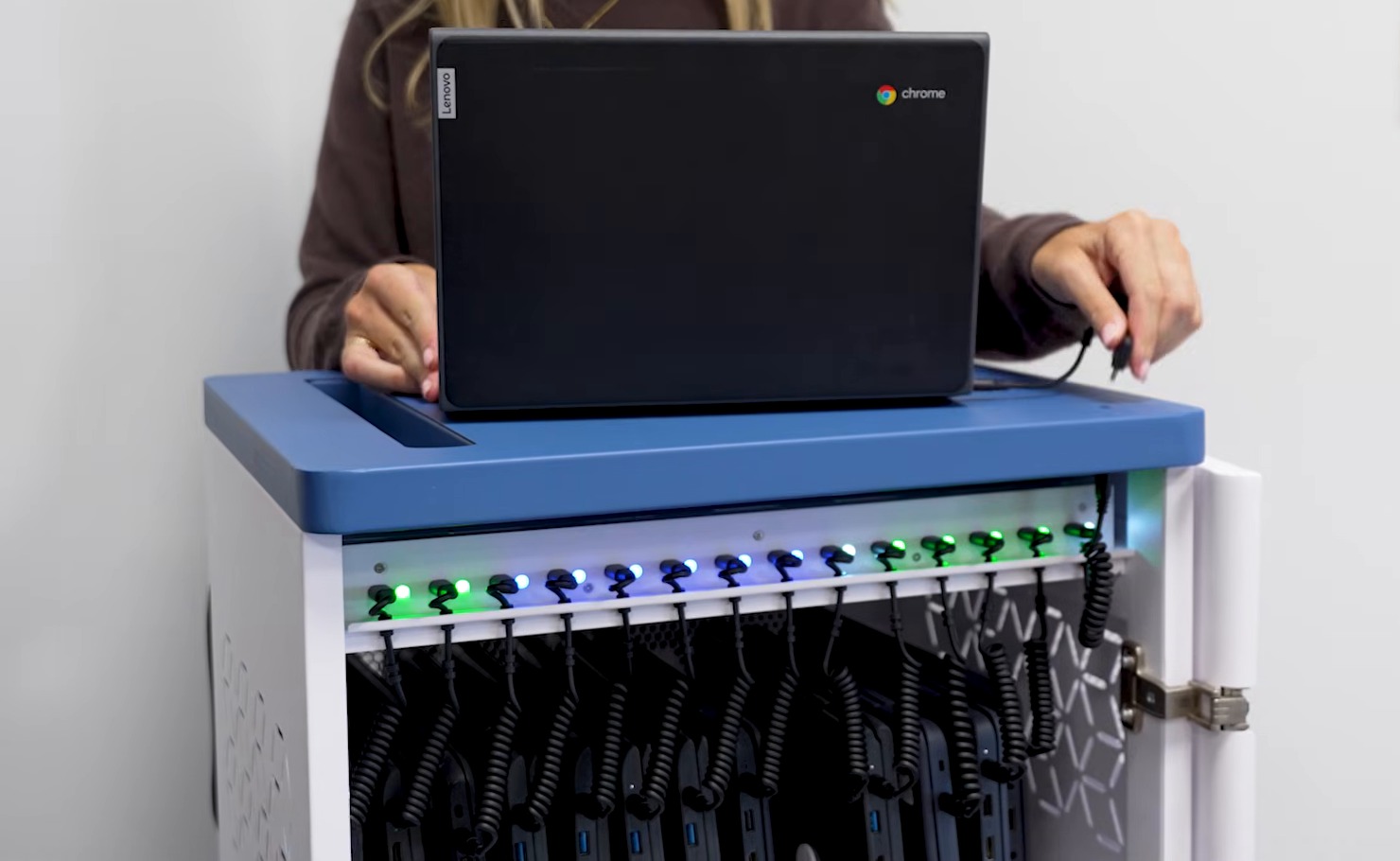

Evo 30, 36, 42External AC and USB-C ports let devices be used or charged without opening the cart.

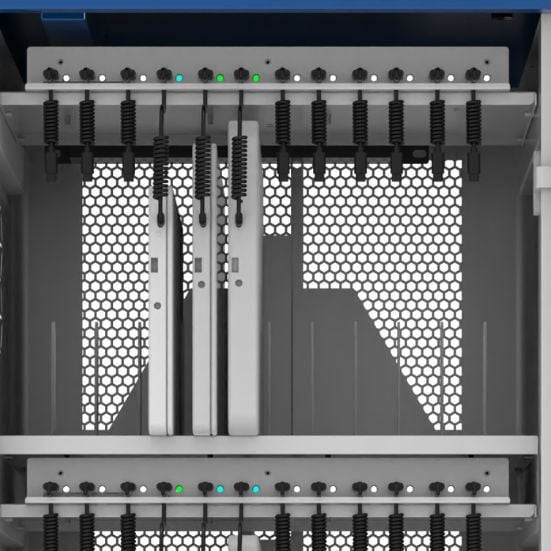

Evo 30, 36, 42Hubs and a simplified divider system are reached from the front of the cart.
All four cartsQuick-Sense Evo dynamically distributes power across every port, up to 65W per port, for Chromebooks, tablets and laptops in the same cart.
Higher-powered devices may also be supported, depending on the device. Ask about yours
All four cartsBays fit select devices up to 17-inch screens.
All four cartsIntegrated electrical and thermal protection; the Evo 30's perforated doors add ventilation and keep charging LEDs visible.
All four carts
The numbers IT and facilities ask for, side by side.
| Spec | Elevate Air EvoMC-4130-EVO | Elevate Evo 30MC-6130-EVO | Elevate Evo 36MC-7136-EVO | Elevate Evo 42MC-7142-EVO |
|---|---|---|---|---|
| Device capacity | 30 devices / 15 devices per shelf | 30 devices / 15 devices per shelf | 36 devices / 12 devices per shelf | 42 devices / 14 devices per shelf |
| Access | Open-access cart | Keyed lock with two keys, hasp for padlock, slide-in doors | Secure device storage, 270-degree doors | Secure device storage, 270-degree doors |
| External AC and USB-C ports | No | Yes | Yes | Yes |
| Max device size | 10.83"H x 1.3"W x 15.24"D; fits select devices up to 17" screen size | 10.83"H x 1.3"W x 15.24"D; fits select devices up to 17" screen size | 10.83"H x 1.37"W x 15.24"D; fits select devices up to 17" screen size | 10.83"H x 1.18"W x 15.24"D; fits select devices up to 17" screen size |
| Per port | Up to 65W* | Up to 65W* | Up to 65W* | Up to 65W* |
| Per hub | 520W | 520W | 390W | 455W |
| System output | 1040W | 1040W | 1170W | 1365W |
| Charging hubs | 2 x 15-port Quick-Sense hubs | 2 x 15-port Quick-Sense hubs | 3 x 12-port Quick-Sense hubs | 3 x 14-port Quick-Sense hubs |
| Input (AC) | 100-240V~, 50/60Hz, 6A max (per hub) / 12A max (cart total) | 100-240V~, 50/60Hz, 6A max (per hub) / 12A max (cart total) | 100-240V~, 50/60Hz, 5A max (per hub) / 15A max (cart total) | 100-240V~, 50/60Hz, 5A max (per hub) / 15A max (cart total) |
| Dimensions (H x W x D) | 35.63" x 24.80" x 19.29" | 36.57" x 27.91" x 19.29" | 49.37" x 20.35" x 19.29" | 49.37" x 20.35" x 19.29" |
| Datasheet | Download the Datasheet | Download the Datasheet | Download the Datasheet | Download the Datasheet |
Warranty on every model: Lifetime on mechanical and structural components; 2 years on electrical components; 1 year on charging cables including ADP; optional after-warranty product protection plans.
*USB-C devices requiring up to 65W, including Chromebooks, tablets and laptops. Higher-powered devices may also be supported, depending on device specifications and charging protocols. Contact JAR Systems for compatibility guidance.
Both balance power per port for USB-C laptops, tablets and Chromebooks, in rooms that don't need a full cart.
Availability, compatibility, warranty and how to buy.
Request a quote and your regional JAR team will confirm availability and timing for each model.
USB-C devices requiring up to 65W, including Chromebooks, tablets and laptops. Higher-powered devices may also be supported depending on device specifications and charging protocols; contact JAR for compatibility guidance. Every model fits select devices up to 17-inch screens.
Check device thickness against bay width: 1.37" on the Elevate Evo 36, 1.3" on the Elevate Air Evo and Elevate Evo 30, and 1.18" on the Elevate Evo 42. Every bay takes devices up to 10.83" high and 15.24" deep.
Lifetime on mechanical and structural components, 2 years on electrical components and 1 year on charging cables including ADP. Optional after-warranty product protection plans are available.
JAR sells through authorized resellers. Request a quote and your regional JAR team coordinates pricing with your reseller, or find a reseller directly.
