Below you will find instructions for installing standalone versions of the Intelligent Charging System.
Important: Always install the Intelligent Charging System in a ventilated space. Disconnect from power before connecting or disconnecting any cables.
About:
The Intelligent Charging System can be integrated with most charging carts that meet the following criteria:
-
The cart’s power strips (up to four) must be disconnectable from the built-in timer or switch so they can connect directly to the Intelligent Charging System.
-
An existing auxiliary power strip may be connected to the designated outlet on the system, or an additional strip can be added for this purpose.
|
Mounted inside of a cart |

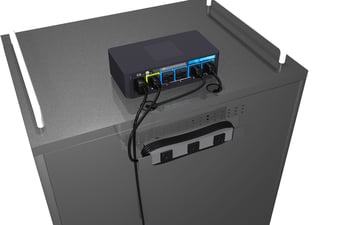

Mounted on top of a cart |

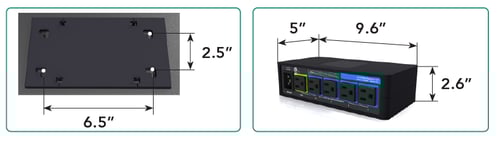

Installation Specifications:
To utilize the included mounting bracket, it is recommended to use four #6 (.1380) self-drilling, tapping, type CSD, cross-recessed pan head screws. The length required must be determined by the surface that it is to be secured to. Be sure to leave enough space for the cables to extend from the back (at least 3.5”).
Note: Installation procedures may vary depending on the environment. For guidance, contact us directly.
Wiring Setup
The Intelligent Charging System accommodates up to four power strips with up to 16 outlets on each, as well as one auxiliary power strip for peripheral devices. The charging outlets on the back of the unit are labeled 1–4, corresponding to the numbered LED indicators on the front of the unit. This allows you to view the charging status of each power strip.
Plug in one or more power strips into the charging outlets in the back of the unit- Plug the devices’ manufacturer-supplied charging adapters into the power strip(s).
- Plug the charging system’s main power cable into the power connector in the back of the unit. Connect to the wall outlet when ready to begin charging.
