Note: The Elevate Air EDU USB-C Open Charging Cart 16 to 32 Upgrade Kit is an optional upgrade for the MC-4016-XX and not included. If you don’t have a kit but are interested in getting one, please reach out to our sales team.

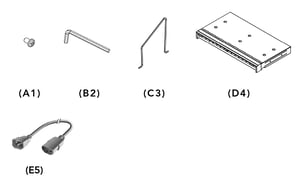

What's Included:
Instructions:

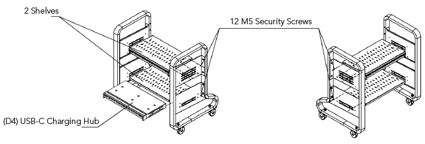

- Using the T25 Torx key, loosen, but do not remove, the 2 security screws securing each shelf and the top USB-C charging hub to the side panels on each side of the cart (12 screws total). Install the USB-C hub (D4) below the bottom shelf OR below the top charging hub using 2 security screws (A1) on each side. Installing the hub below the top shelf provides top-down cables. Installing the hub below the bottom shelf provides extra space for larger devices. Fully tighten the 16 screws securing the shelves and hubs with the Torx key hand tool.
- Insert the bay dividers (C3) into the bottom shelf.
- Connect the short power cable (E5) from the top hub to the bottom hub. Connect external power cable to the back of the top hub.
Tip: For a printable guide, view the AIR-KIT32 Elevate Air Open USB-C Charging Cart 32-User Upgrade Kit Installation Manual.
