Elevate charging carts feature adjustable device bays with multiple configuration options. Follow the instructions below to remove and install the device bays, and to choose the configuration that best fits your needs. For additional information, please refer to your solution-specific user guide.
Removing Device Bays
To remove dividers, pull the taller, back part of the divider toward you and lift it upward out of the slot. Then, guide the front part of the divider out of the tray.
Installing Device Bays
To install the dividers, place the shorter side of the divider into the front slot first, then pull the taller, back part toward you and downward into the rear slot.
Device Bay Configurations
| Device Quantity/Size | Device Pattern | Compatible with |

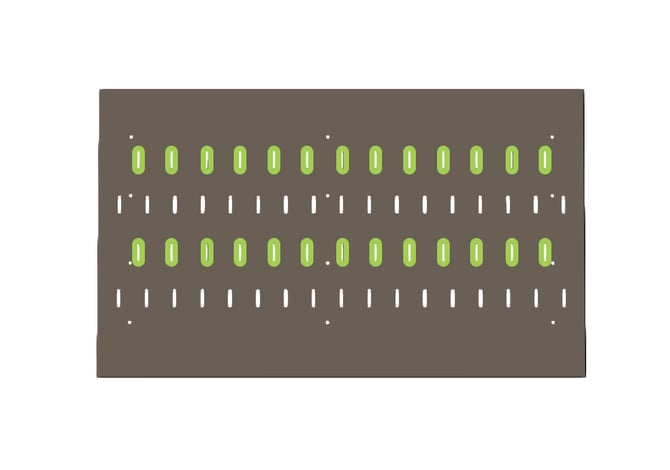

| 12 Devices Up to 1.25" Wide |  |
MC-40XX-XX |

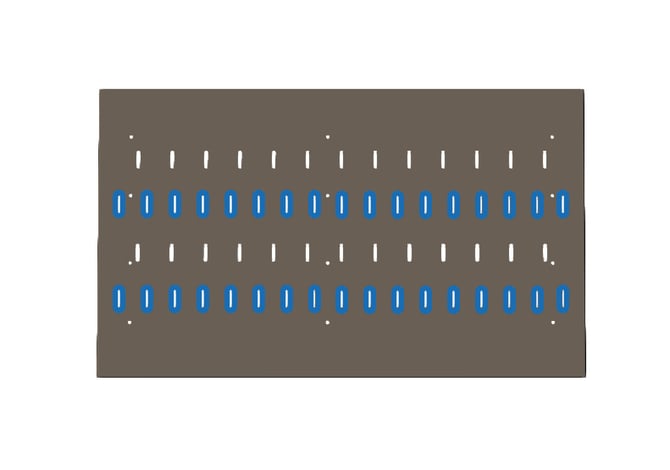

| 16 Devices Up to 1" Wide |  |
MC-40XX-XX |
| 20 Devices Up to 1.5" Wide | Coming soon! | MC-6032-XX |
| 24 Devices Up to 1.25" Wide | Coming soon! | MC-6032-XX |

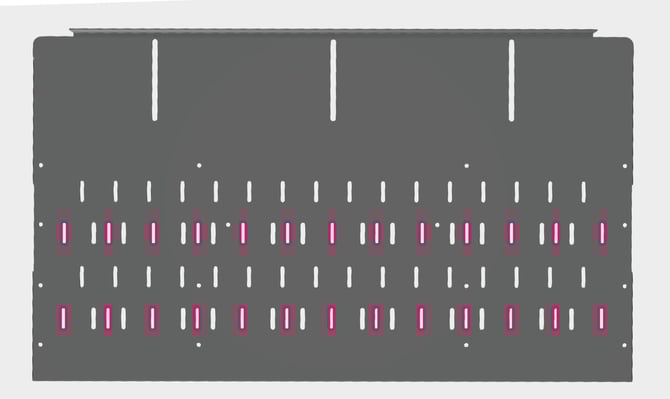

| 24 Devices Up to 1.5" Wide |  |
MC-70XX-MAX |

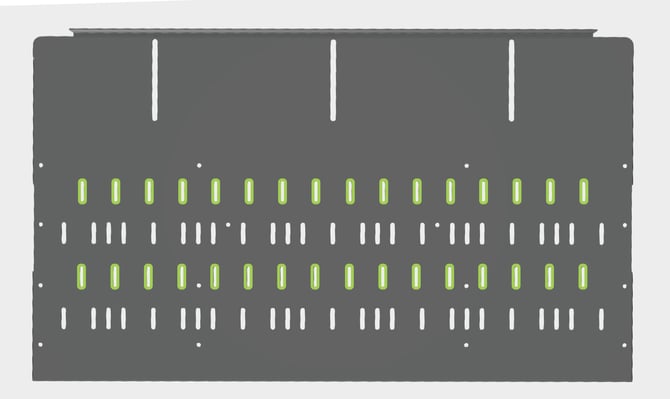

| 30 Devices Up to 1.25" Wide |  |
MC-70XX-MAX |
| 32 Devices Up to 1" Wide | Coming soon! | MC-6032-XX |

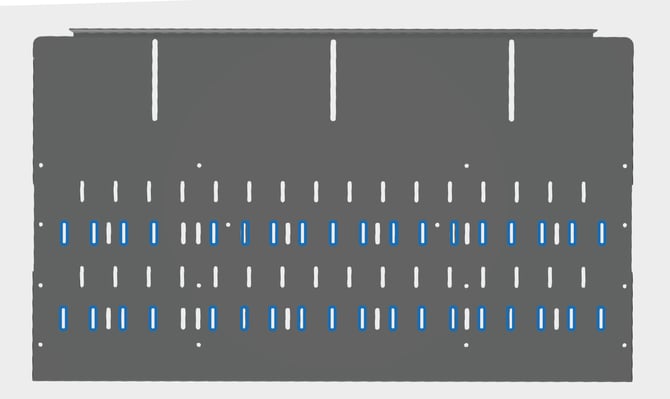

| 36 Devices Up to 1" Wide |  |
MC-70XX-MAX |
